Puzzle Parking vs Stack Parking: Which One Should You Choose?

What is the difference between stack and puzzle parking?

The difference between stack and puzzle parking is how the platforms move. Stack parking moves a car only up and down. Puzzle parking moves pallets up, down and sideways. That one extra direction is what lets the puzzle grid pull out any car without touching the others.

Everything else — cost, capacity, civil work, maintenance — follows from this one point.

Stack parking vs puzzle parking: side-by-side

This is the puzzle parking vs stack parking comparison in full, on the points that decide most Indian projects.

Scroll the table sideways on a phone to see both columns.

What is a stack parking system?

A stack parking system parks cars one above another on a lifting platform. A hydraulic or electro-mechanical unit raises the upper car, and a second car parks in the space underneath. Safety locks hold the platform at every level.

It is the simplest mechanical parking system sold in India, and the cheapest way to double a parking bay. i-CUBE builds it in 2-post and 4-post versions, in 2-level and 3-level heights, with load ratings of 2,000 kg, 2,500 kg and 3,000 kg so sedans and SUVs both fit.

• 2-post, 2-level — the entry-level unit. Doubles one bay.
• 2-post, 3-level — triples one bay where the roof is high enough.
• 4-post, 2-level — self-supporting, steadier, good for uneven slabs.
• 4-post, 3-level — the heavy-duty option for maximum capacity.

Read the full specification on the stack parking system page.

What is a puzzle parking system?

A puzzle parking system is a semi-automatic parking system where every car sits on its own steel pallet. The pallets slide sideways and lift vertically, like the tiles in a sliding puzzle. A PLC (the small computer that controls the machine) works out which pallets to move and in what order.

Because it can open a path to any pallet, the driver never has to move someone else’s car. i-CUBE builds puzzle parking in 2 to 5 levels, above ground, in a pit, or as a hybrid of both for awkward sites.

• 2 level — G+1, fits under most stilts and society parking.
• Multilevel — G+2 to G+5, for basements and podiums.
• 2 or 3 level pit — the top deck sits flush with the plinth where height is restricted.
• Hybrid — above-ground levels combined with a pit on irregular plots.

Full details are on the puzzle parking system page, and our explainer on what puzzle parking means and how it works.

Dependent vs independent parking: what the terms mean

Suppliers use these two words a lot, and they decide which system you can actually use.

This matters most at 8 in the morning. In a dependent system, a resident who is late for work has to find the neighbour whose car is parked below. In a society with 60 flats, that phone call happens every day. That is the single biggest reason Indian developers choose puzzle parking over stack parking for resident parking.

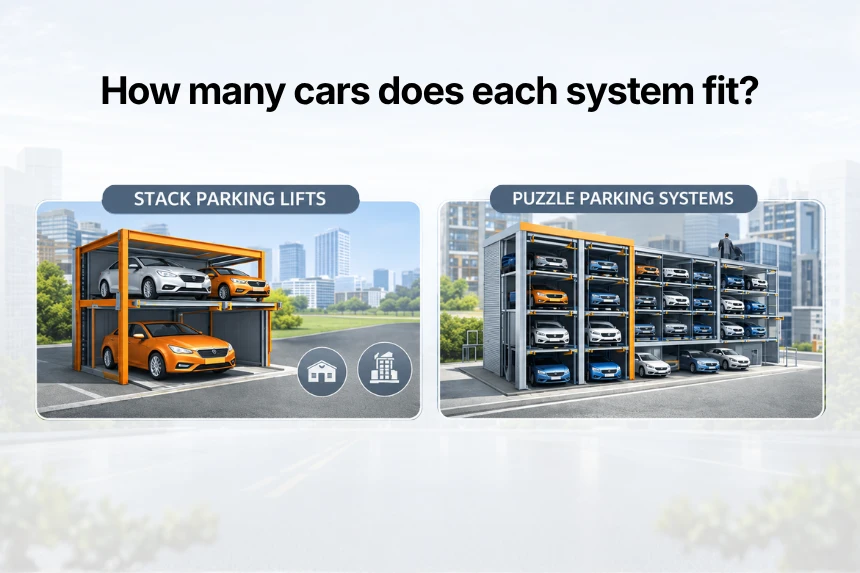

How many cars does each system fit?

Capacity is where puzzle parking vs stack parking stops being close. Both systems use the height of your building instead of its floor area, but the gain depends on how many levels you can build.

• Stack parking turns one bay into 2 or 3. A row of ten bays becomes 20 or 30 cars.
• Puzzle parking fits about 3× the cars of open parking on the same footprint, and more on taller grids, because it also removes the driving aisles between rows.

The second point is the one people miss. Open parking spends a large part of the floor on ramps and aisles. A puzzle parking system needs only the ground row plus the space to drive in and out, so the saving is bigger than the level count alone suggests.

To see what your own plot holds, use the parking space calculator.

Stack vs puzzle parking cost in India: what drives the difference

A puzzle parking system costs more per car than a stack parking system. That gap is not a mark-up — it comes from real differences in what gets built.

1. Number of motors and drives. A stack unit lifts one platform. A puzzle grid drives every pallet, up and sideways.
2. The steel structure. Stack parking is a free-standing frame over one or two bays. Puzzle parking is a full structural grid across the whole parking area.
3. Controls. Stack parking runs on a push-button panel. Puzzle parking needs a PLC, position sensors and safety interlocks.
4. Civil work. A pit, a podium slab or a basement adds cost before the system arrives.
5. Levels. Cost per car falls as you add levels, because the foundation is shared.
6. Scope. Installation, commissioning, the AMC period and EV charging points all change the final figure.

For a wider view of pricing across system types, see our guide to mechanical parking systems.

Pit depth, headroom and what your site needs

This is usually the point where one system gets ruled out, and most comparison articles skip it.

• Stack parking needs height above the slab. If your stilt has a low beam soffit, a 2-level stack may not clear an SUV on the lower deck.
• Puzzle parking needs a grid area and, often, depth. A pit version buys you a level without raising the roofline, which is why it suits height-restricted societies.
• Column spacing matters. Puzzle parking works best on a clean, regular grid. Closely spaced or irregular columns cut the pallet count.
• Floor loading. Both systems concentrate load at the base frame, so the slab or foundation has to be checked by the structural consultant.
• Drainage and waterproofing. Any pit in an Indian basement needs a sump and proper waterproofing before the system goes in.

Where depth is available but height is not, a pit parking system is often the answer. Our Kshitij Aria project is one example.

Running cost, AMC and what happens in a power cut

Buyers compare purchase price and forget the next ten years. The running picture is different from the buying picture.

• Stack parking is cheaper to maintain. Fewer moving parts means a smaller annual maintenance contract and fewer service calls.
• Puzzle parking needs a proper AMC. Pallet rollers, chains, sensors and the controller all need scheduled checks. Skipping the AMC is the main reason these systems get a bad name.
• Power use is small either way. The motor runs only while a car is moving, which is a few seconds per trip.
• In a power cut, nothing falls. Both systems hold cars on mechanical locks, not on hydraulic pressure. Cars stay where they are until power returns.
• Ask about manual lowering. Check with your supplier how a car is brought down during a long outage, and who is trained to do it.

Which system suits your building?

In puzzle parking vs stack parking, the right answer changes with who uses the parking, not with the size of the project.

Which is better, puzzle or stack parking? The rule

Most articles on puzzle parking vs stack parking end on “it depends”. Here is the actual rule we use on site.

Ask one question: will the two cars in a bay belong to the same person? If yes, stack parking is enough. If no, you need puzzle parking. Everything else is detail.

A third option is common and often the cheapest overall: use puzzle parking for resident and visitor slots, and stack parking for staff, drivers or second cars of the same flat. You pay the higher per-car cost only where independent access is genuinely needed.

Can you upgrade from stack parking to puzzle parking later?

Sometimes, but plan for it now rather than hoping later. A stacker is a free-standing frame, so removing it is straightforward. The hard part is the space it leaves behind.

• Height and depth are the blockers. A puzzle grid usually needs more clear height, or a pit that was never cast.
• Column grid decides the pallet layout. A stilt laid out for stackers may not divide cleanly into puzzle bays.
• Power and drainage. A larger system needs a bigger supply, and any pit needs a sump.
• The practical route is to leave a pit provision or a clear grid area in the drawing today, even if you install stack parking first.

Retrofits into occupied buildings are their own problem. We cover them in retrofitting parking elevators in existing infrastructure.

Approvals and parking norms in India

For a developer, the choice is often settled by the approval file rather than by preference. Local authorities set a minimum number of parking spaces for the built-up area of a project, and the building use certificate depends on meeting it.

Two points matter when you compare the systems:

• Some authorities count dependent slots differently. Where stacked or dependent parking is not counted at full value, a stack parking system may not close your shortfall even though it physically holds the cars. Rules vary by state and municipal corporation, so confirm the position with your local authority or liaison architect.
• Buyers and RERA disclosures. Parking allotment has to be disclosed to buyers. Dependent slots allotted to two unrelated flats are a common source of complaints after possession.

National guidance on building requirements sits with the Bureau of Indian Standards through the National Building Code, and urban parking policy with the Ministry of Housing and Urban Affairs. Local development control rules always take precedence.
