Puzzle Parking System in India — Fit 3× More Cars
i-CUBE builds puzzle parking systems that slide and lift cars on steel pallets — so the ECS count your project owes fits on the plot you already have, and BU permission stays on schedule. We assess your site first, then give you a number you can trust.
What is a Puzzle Parking System?
A puzzle parking system is a semi-automated mechanical parking setup where cars rest on steel pallets arranged in a grid. Pallets slide horizontally and lift vertically — like tiles in a sliding puzzle — so any car can be parked or retrieved independently, without moving another vehicle. That independence is what separates a puzzle car parking system from simpler stackers, where the lower car must move before the upper one comes down.
For developers and builders, that means one surface slot becomes two to five stacked slots — the fastest route to meeting a sanctioned ECS count on a tight plot. We’ve seen it unblock approvals under deadline: Solitaire Connect secured BU permission within one month of i-CUBE’s intervention. Read the deeper mechanics in our explainer: puzzle parking — what it means and how it works.
How Does a Puzzle Parking System Work?
Features of Our Puzzle Parking System
No car ever waits for another to move — the grid does the moving.
Two to five levels stack on one surface footprint.
Pallet capacities and heights sized to your project’s car mix.
Configurations for open plots, basements and height-capped sites.
A hydraulic puzzle parking system for smooth, quiet strokes — or electro-mechanical for high-frequency duty.
Mechanical locks hold every raised pallet, even in a power failure.
All movement stops the instant anything crosses the grid.
No two pallets can ever contest the same path.
Drain-guided, corrosion-protected decks that shield cars in monsoon.
Stilts, basements, podiums and open plots — engineered per site.
Types of Puzzle Parking System

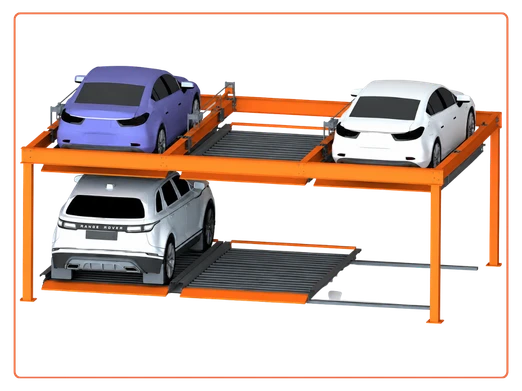

2 Level Puzzle Parking System
The entry-level grid that doubles capacity in stilt and open parking — the fastest retrofit for societies.
- 1 ground row + 1 raised level (G+1)
- Independent retrieval, no car-shuffling
- Ideal for stilts, societies and open plots

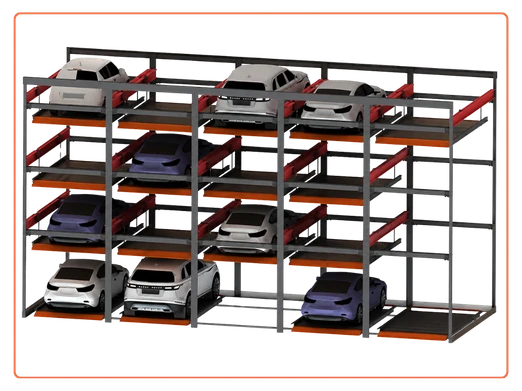

Multilevel Puzzle Parking System
G+2 to G+5 grids for basements and podiums where car counts run into the hundreds.
- Up to 5 levels on one footprint
- Scales to large residential & commercial counts
- High-cycle drives for daily traffic

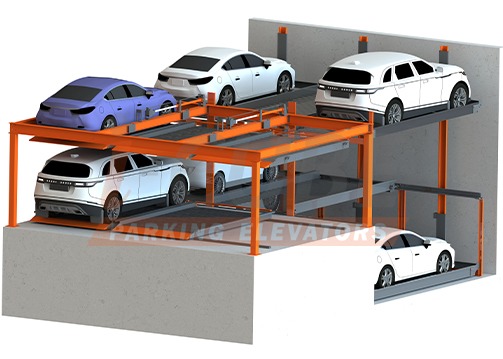

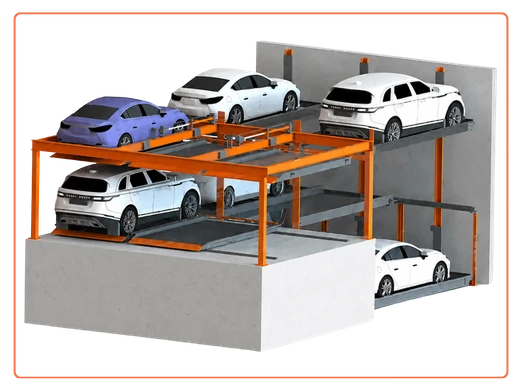

Hybrid Puzzle Parking System
Combines above-ground and pit levels to squeeze maximum slots out of irregular sites.
- Above-ground + below-ground in one grid
- Best density on constrained plots
- Custom-engineered per site

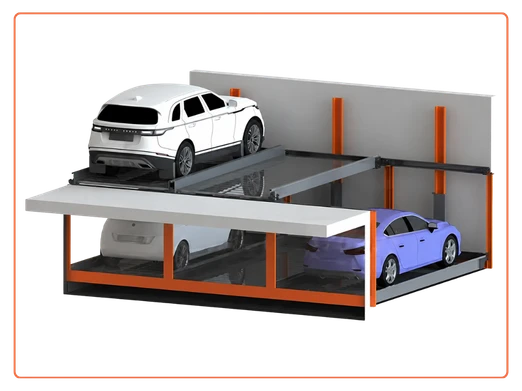

2 Level Pit Puzzle Parking System
One level sinks below grade, keeping the top row flush with the ground — ideal under height restrictions.
- Top pallets sit at plinth level
- Preserves elevation views & bye-law height caps
- Pit civil work scoped in the BOQ

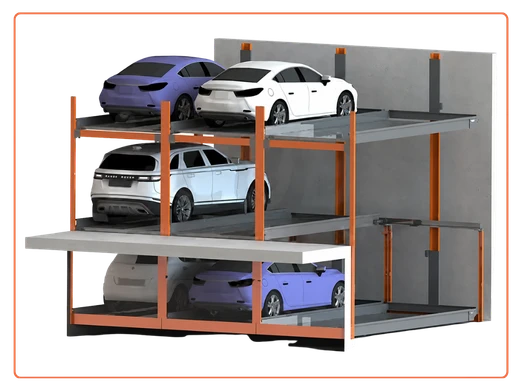

3 Level Pit Puzzle Parking System
Two levels below grade, triple capacity, zero visual bulk above the plinth line.
- Triple capacity, nearly invisible
- Suits premium low-rise & heritage-sensitive sites
- Waterproofing & drainage engineered in
Comparing categories first? See our stack parking system and pit parking system ranges, or start from the full mechanical parking system overview.
Applications of the Puzzle Car Parking System
From ECS-compliance rescues on developer projects to end-of-dispute retrofits in societies — the same grid, sized differently:
Puzzle Parking System vs Traditional Parking
| Criteria | Puzzle Parking System | Traditional Parking |
|---|---|---|
| Space required | Minimal — one footprint stacks 2–5 levels | Large land area per car |
| Parking capacity | Up to 3× or more on the same plot | Fixed by available land |
| Car retrieval | Independent — no car blocks another | Tandem/blocked cars, aisle circulation |
| Cost per slot | Lower than excavating extra basements | High land + civil cost per slot |
| Installation time | Weeks once civil work is ready | Months of construction |
| Scalability | Modular — add grids as demand grows | Limited by plot boundaries |
| Maintenance | Scheduled AMC visits | Sweeping, lighting & security overheads |
Puzzle Parking System Cost in India
Anyone quoting a puzzle parking system price before seeing your site is guessing. Two projects with identical car counts can budget very differently — these six factors decide your number:
G+1 budgets very differently from G+4 or a pit grid — the level count sets the base price.
Pit systems add excavation, waterproofing and drainage civil work to the budget.
Hydraulic and electro-mechanical drives carry different equipment and running costs.
Per-car cost falls as the grid grows — larger projects budget better per slot.
Foundation loads, power supply, column spacing and crane access for erection.
Supply-only vs turnkey with civil work, plus the maintenance coverage you choose.
Why Choose i-Cube Parking Elevators?
Precision engineering, proven safety standards — and a track record you can visit before you decide.
Our parking consultancy team studies demand, norms and layout before any machine is proposed.
Above-ground, pit and hybrid puzzle grids engineered to your plot — not a one-size catalogue.
Certificate of Empanelment from CREDAI (2023) — the developer community’s own vetting.
An in-house Ahmedabad service team and preventive AMC plans keep uptime a promise, not a hope.
Frequently Asked Questions
There’s no honest flat rate — the puzzle parking system price in India depends on levels, above-ground vs pit configuration, drive type, grid size and site civil work. i-CUBE quotes a line-itemised BOQ after a free site assessment, so the number you plan with is the number you build with
Roughly the footprint of the ground-level row plus circulation — each added level multiplies capacity on that same footprint. Exact grid widths, ceiling heights and pit depths vary by model; our engineers confirm fit during the free site survey
Cars stay locked on mechanically held pallets — they don’t sink or drift. Retrieval resumes on power restoration, and manual-lowering procedures plus optional backup supply cover emergencies.
Most grids run semi-automated: the driver parks on a pallet and the machine does the rest. A fully automated puzzle parking system adds entry cabins and software-managed storage — worthwhile for high-turnover commercial sites, usually unnecessary for residential use.
A stacker lifts cars in fixed columns, so the lower car often must move before the upper one comes down. A puzzle car parking system shuffles pallets sideways as well as up, so every car is retrievable independently. Compare our stack parking systems if your budget or layout favours them
Depends on grid size and civil readiness — retrofits in ready stilts move fastest, pit systems wait on excavation and waterproofing. You get a committed erection schedule with the BOQ.
Yes — i-CUBE has created 6,500+ parking spaces across the nation, with its manufacturing base and service headquarters in Ahmedabad. When comparing puzzle car parking system India suppliers, ask each one where its nearest service team actually sits
Ignore brochures; verify installed base. Ask for named projects you can visit, the local service team’s location, AMC terms in writing, and proof like CREDAI empanelment. Among puzzle parking system India options, the vendor who inspects your site before quoting is the one planning to still be around after commissioning.
Pallet capacities and heights are chosen per project — standard grids take sedans and most SUVs, and heavier variants cover larger vehicles. Share your expected car mix in the enquiry and we’ll size the grid for it.
Looking for puzzle parking system manufacturers in India with a proven track record?
Get in touch with i-CUBE Parking Elevators for a free site assessment and a customised, line-itemised solution.
