Hydraulic Parking System in India — Park 2 to 3× More Cars
i-CUBE builds hydraulic parking systems that lift and lower cars on oil-driven platforms, so one bay holds two or three cars instead of one. Developers use them to reach the ECS count a project owes and keep BU permission on schedule. Societies and bungalow owners use them to end a daily parking fight. We study your site first, then give you a number you can plan with.
What is a Hydraulic Parking System?
A smarter way to multiply parking capacity in the same footprint — engineered, installed and supported end-to-end.
A hydraulic parking system is a car parking system in which platforms carrying cars are raised, lowered or shifted by hydraulic cylinders. A small power pack pushes oil into the cylinder, the cylinder pushes the platform, and the car moves. Because the oil does the lifting, the movement is smooth and quiet, and there are far fewer moving parts than in a chain-driven system.
The word “hydraulic” describes the drive, not one machine. The same drive runs a two-car stacker, a pit system, a puzzle grid and a single car parking hydraulic lift. So when a builder asks for a hydraulic car parking system, the real question is which layout fits the plot — and that is what our engineers work out before quoting.
For developers and builders, the point is simple: one surface slot becomes two or three stacked slots. Basement and stilt parking is generally FSI-exempt, so mechanising parking protects saleable area while still meeting the sanctioned car count. For a housing society or a bungalow, a hydraulic lift for car parking turns one driveway into two or three parking spaces without any new construction.
How Does a Hydraulic Parking System Work?
From first site visit to final commissioning — a clear, managed path.
Drive onto the platform
The driver parks on the platform at ground level, pulls the handbrake and walks away. No ramps, no reversing into a tight corner.
Sensors check the car
Photo-electric sensors confirm the car sits inside the platform limits. If anything is out of place, nothing moves.
The power pack builds pressure
An electric motor pumps oil into the hydraulic cylinder. This is the only part of the hydraulic parking system that uses real power, and only for a few seconds.
The platform moves
The cylinder raises the platform, or lowers it into a pit. In a puzzle layout the lower platforms also slide sideways to open a gap.
Mechanical locks take the load
Steel locks engage and hold the platform. The car rests on the locks, not on oil pressure — so it stays put even with the power off.
Recall in one command
Press the button or enter the slot number. The platform returns to ground level and the car drives straight out, usually in under a minute.
Features of Our Hydraulic Parking Systems
Oil-driven movement is far quieter than a chain drive — it matters right below a flat.
A cylinder and a power pack replace chains and sprockets, so less can wear out.
Steel locks carry the load once the platform stops. The car never rests on oil pressure alone.
Movement stops the moment anything crosses the platform path.
Platforms stay locked. Manual lowering brings a car down if power is out for long.
Push-button or key operation, with overload protection and an emergency stop.
Platform width, height and load capacity are chosen for your project’s car mix.
Corrosion-protected decks built for basement damp and monsoon conditions.
Sealed cylinders, quality hoses and a drip tray keep the parking floor clean.
Column spacing, headroom and ramp position are measured before anything is built.
Oil checks and seal service on a schedule, under an AMC plan run by our own team.
Types of Hydraulic Parking Systems
Every plot gets a different answer. These are the hydraulic parking systems we build most often in India, from a simple two-car stacker to a full grid. Not sure which one fits your site? Start with the cards below, or ask our engineers.

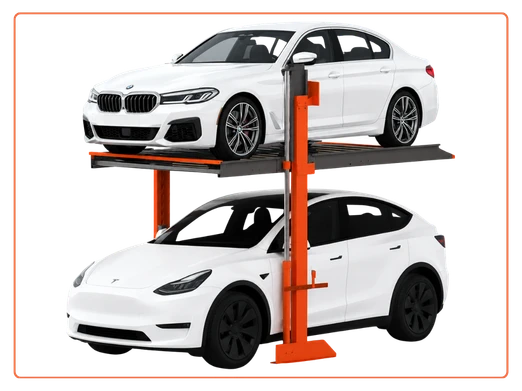

Hydraulic Stack Parking System
The simplest and cheapest way to double a slot. A hydraulic stack parking system lifts one car so a second can park underneath, in two or three levels.
- 2 or 3 cars in one bay
- Dependent or independent versions
- Best cost per slot

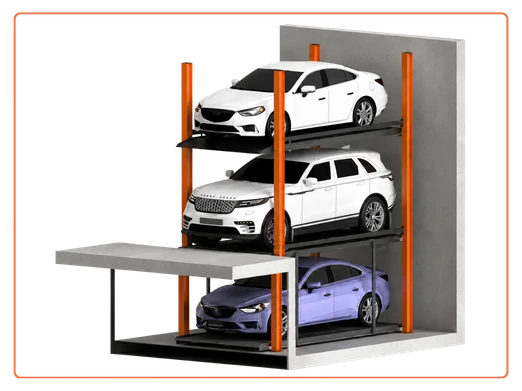

Hydraulic Pit Parking System
Platforms drop into an excavated pit, so the extra cars sit below ground and the top car stays level with the plinth. Nothing is added above the plot.
- No added height above ground
- 2 and 3 level versions
- Suits height-capped sites

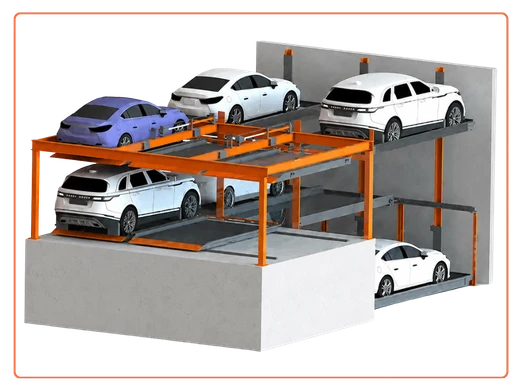

Hydraulic Puzzle Parking System
Platforms move up, down and sideways like a sliding puzzle, so every car can be taken out on its own without moving another car first.
- Independent retrieval
- Highest cars per square metre
- For larger car counts
Hydraulic Car Parking Lift
A parking hydraulic lift is a single platform that carries a car between floors — ground to basement, or ground to terrace. An underground hydraulic car parking lift system replaces a ramp completely and frees the area a ramp would have eaten.
- Ground to basement or upper floor
- No ramp needed
- Popular for bungalows and showrooms

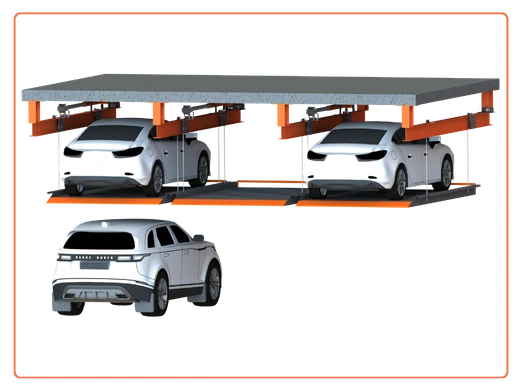

Hydraulic Suspended Parking System
The platform hangs from the ceiling or a frame instead of standing on posts, which keeps the floor clear when column spacing is tight.
- Ceiling type and frame type
- Keeps the floor free
- Good for basement retrofits

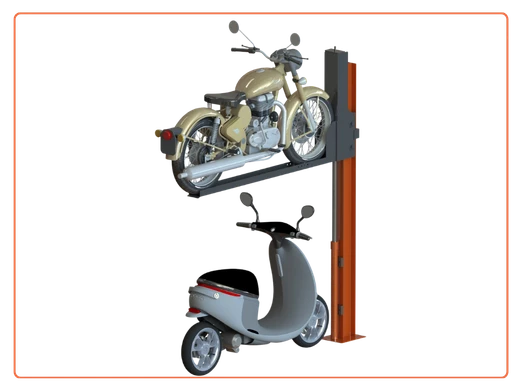

Hydraulic Two-Wheeler Parking
The same hydraulic drive sized for scooters and bikes, using a telescopic cylinder to lift a platform of two-wheelers clear of the floor.
- Single and group versions
- Very small footprint
- Quick to install
Looking at other drive types too? See the full mechanical parking system range, or the tower parking system and rotary parking system for tall, high-count sites.
Where Hydraulic Parking Systems Are Used
Anywhere the car count is higher than the floor area allows — a parking hydraulic lift or a stacker adds the missing slots without buying new land:
Hydraulic vs Electro-Mechanical vs Traditional Parking
| Feature | Hydraulic Parking System | Electro-Mechanical (Chain) | Traditional Parking |
|---|---|---|---|
| How it moves the car | Oil pressure in a cylinder | Motor, chains and sprockets | The driver does |
| Cars per bay | 2 to 3 | 2 to 3, or more in towers | 1 |
| Noise | Low — smooth and quiet | Higher, chain noise on every cycle | None |
| Moving parts to maintain | Few | More — chains need regular checks | None |
| Speed per cycle | Steady, around a minute | Faster, better for constant in-and-out | Instant |
| Best suited to | Homes, societies, residential projects | Malls, offices, high-turnover sites | Sites with land to spare |
| Cost per slot | Usually the lower of the two | Higher on comparable levels | Highest — land is the cost |
| Highest — land is the cost | Space required | One bay footprint | Full area per car |
| Full area per car | Installation time | Weeks | Months of construction |
Hydraulic Parking System Cost in India
Search for a hydraulic car parking system price and you will find numbers from ₹90,000 to over ₹15 lakh. Both are true, and neither is your price. Anyone quoting a hydraulic parking cost before seeing your site is guessing. These six things decide the number:
A two-level bay and a three-level bay are different machines. The level count sets the base price more than anything else.
Dependent systems are cheaper but the ground car must move first. Independent retrieval adds mechanism, and cost.
An above-ground stacker needs almost no civil work. A pit needs excavation, waterproofing and drainage — real money in a hydraulic parking price.
A 2,000 kg platform costs less than one built for heavy SUVs. Your project’s car mix changes the steel.
Headroom, column spacing, floor loads, power supply and water table all change what can be installed and what it takes.
Supply only, or turnkey with civil work and commissioning — plus the maintenance cover you choose after handover.
Our promise: we do not quote a per-slot rate over the phone. You get a site visit and a line-item BOQ, so the hydraulic parking system cost you plan with is the one you build with. Want a rough idea first? Use our parking space calculator.
Why Choose i-Cube Parking Elevators?
Precision engineering, proven safety standards — and a track record you can go and visit before you decide.
Our parking consultancy team studies demand, norms and layout before any machine is proposed.
Hydraulic and electro-mechanical are both in our range, so the advice you get is about your site, not our stock.
Stack, pit, puzzle, suspended and single lift versions are engineered to your plot — not picked off a catalogue.
Certificate of Empanelment from CREDAI (2023) — the developer community’s own vetting.
75+ projects and 6,500+ parking spaces across India, including Shivalay Sharnam and Spectra — see all projects.
An in-house Ahmedabad service team and preventive AMC plans, so a breakdown is a call, not a search.
Frequently Asked Questions
A hydraulic parking system is a car parking system that uses hydraulic cylinders to raise, lower or shift platforms carrying cars. A power pack pushes oil into the cylinder, the cylinder moves the platform, and two or three cars end up sharing the space of one. It is used in stack, pit, puzzle and single-lift layouts
You park on a platform at ground level and walk away. Sensors check the car is in position, the power pack builds oil pressure, and the cylinder lifts the platform or lowers it into a pit. Mechanical locks then take the weight. To get the car back, one command brings the platform down, usually in under a minute
There is no honest flat rate. Ask three suppliers for a hydraulic car parking system price and you will get three different answers, because each one is sizing a different machine. The hydraulic car parking system cost depends on the number of levels, dependent or independent design, whether a pit is needed, platform capacity, site conditions and scope. Published figures range from about ₹90,000 for a basic two-car stacker to well over ₹15 lakh for a large multi-level system. i-CUBE gives a line-item BOQ after a free site assessment instead of a phone quote
Yes, when it is built and maintained properly. Every i-CUBE system uses mechanical anti-fall locks that hold the platform, photo-electric sensors that stop movement if anything is in the way, overload protection and an emergency stop. The car rests on steel locks, not on oil pressure
A hydraulic stack parking system lifts one car so another can park underneath it, in a fixed column of two or three levels. It is the simplest and most economical hydraulic option. Dependent versions need the ground car to move first; independent versions let each car in and out on its own
A hydraulic car parking lift price depends mainly on travel height, load capacity and whether a pit and shaft are needed. A simple two-post home stacker sits at the low end; a hydraulic parking lift price for a ground-to-basement car lift with civil work is much higher. We size the lift to your headroom and car weight first, then quote
Yes. A hydraulic lift car parking setup is one of the most common requests we get from bungalow and villa owners, because a single driveway becomes two or three parking spaces with no new construction. The main things to check are ceiling height, floor strength and a stable power supply
Yes. An underground hydraulic car parking lift system carries the car from ground level down to the basement and back, which removes the need for a ramp and frees the area the ramp would have used. It needs a pit, waterproofing and drainage designed in from the start.
Nothing moves and nothing drops. The platform is held by mechanical locks, so cars stay exactly where they are. Normal operation resumes when power returns, and a manual lowering procedure is available if a car has to come down before then
Choose hydraulic for homes, societies and residential projects, where quiet running and low maintenance matter more than speed. Choose electro-mechanical where cars move in and out all day, such as malls and offices. i-CUBE builds both, so ask us to assess the site rather than picking from a brochure
Yes — i-CUBE has created 6,500+ parking spaces across India, with manufacturing and service headquarters in Ahmedabad. When you compare hydraulic parking system manufacturers, ask each one where its nearest service team actually sits, because that is what decides how fast a breakdown gets fixed
Looking for hydraulic parking system manufacturers in India with a proven track record?
Talk to i-CUBE Parking Elevators for a free site assessment and a line-item quote you can plan around.
